SPECIFICATIONS

Battery: 48V 17.5Ah lithium battery

Battery Capacity: 17.5AH

Battery Position: Integrated Battery

Brake: Hydraulic oil disk brakes

Braking System: Hydraulic Disc Brake (Hydraulic Brake Pad)

Brand Name: OEM

Charging Time: >3 hours

Derailleur: 9-speed-gears

Display: Colorful LCD Display

Frame: Aluminum alloy

Frame Material: Aluminum alloy

Gears: 9 SPEED

Max Load: 150kgs

Max Speed: >50km/h

Model Number: TH-V 10

Motor Power: 48V 1000W

Motor position: Central Motor

Place of Origin: Zhejiang, China

Power Supply: Lithium Battery

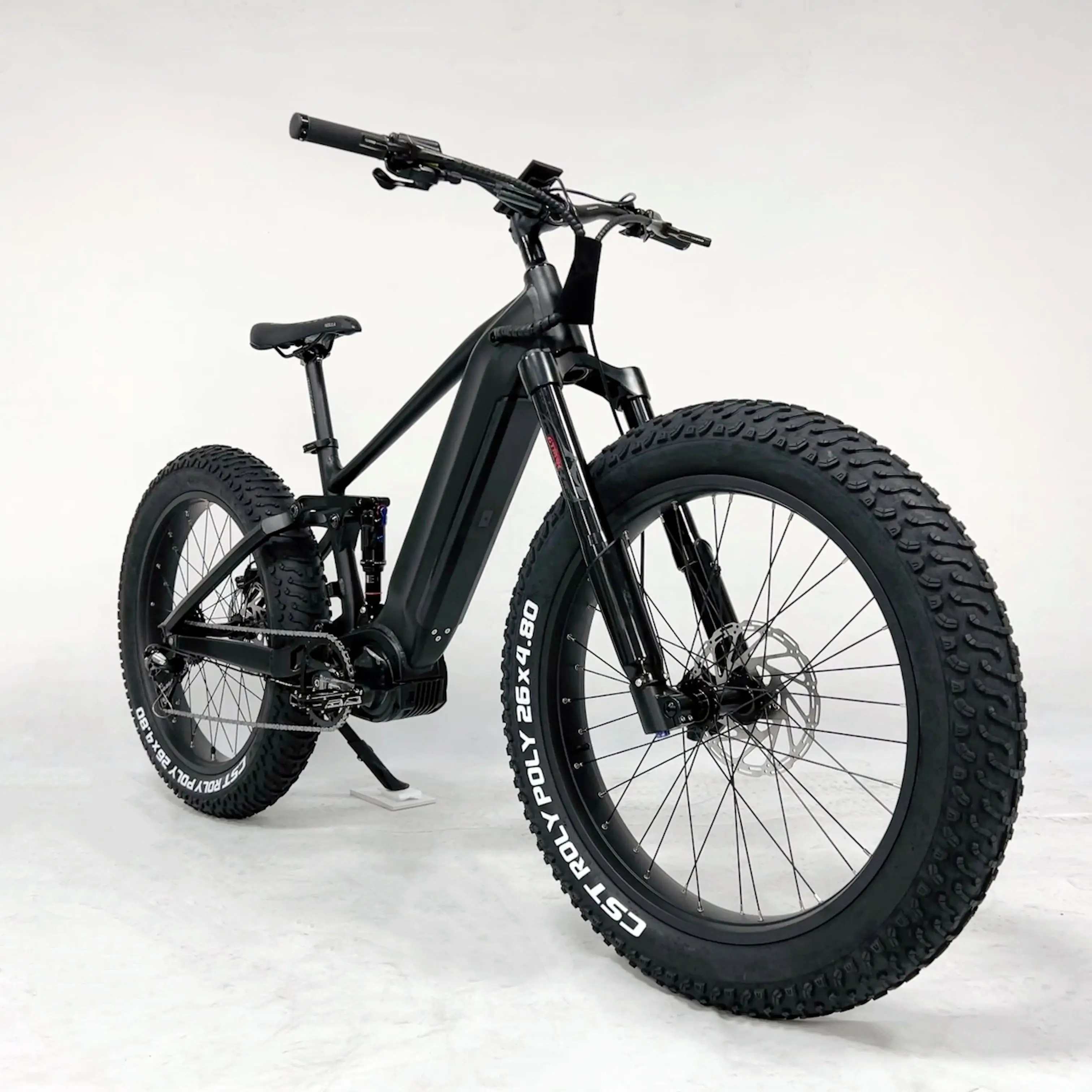

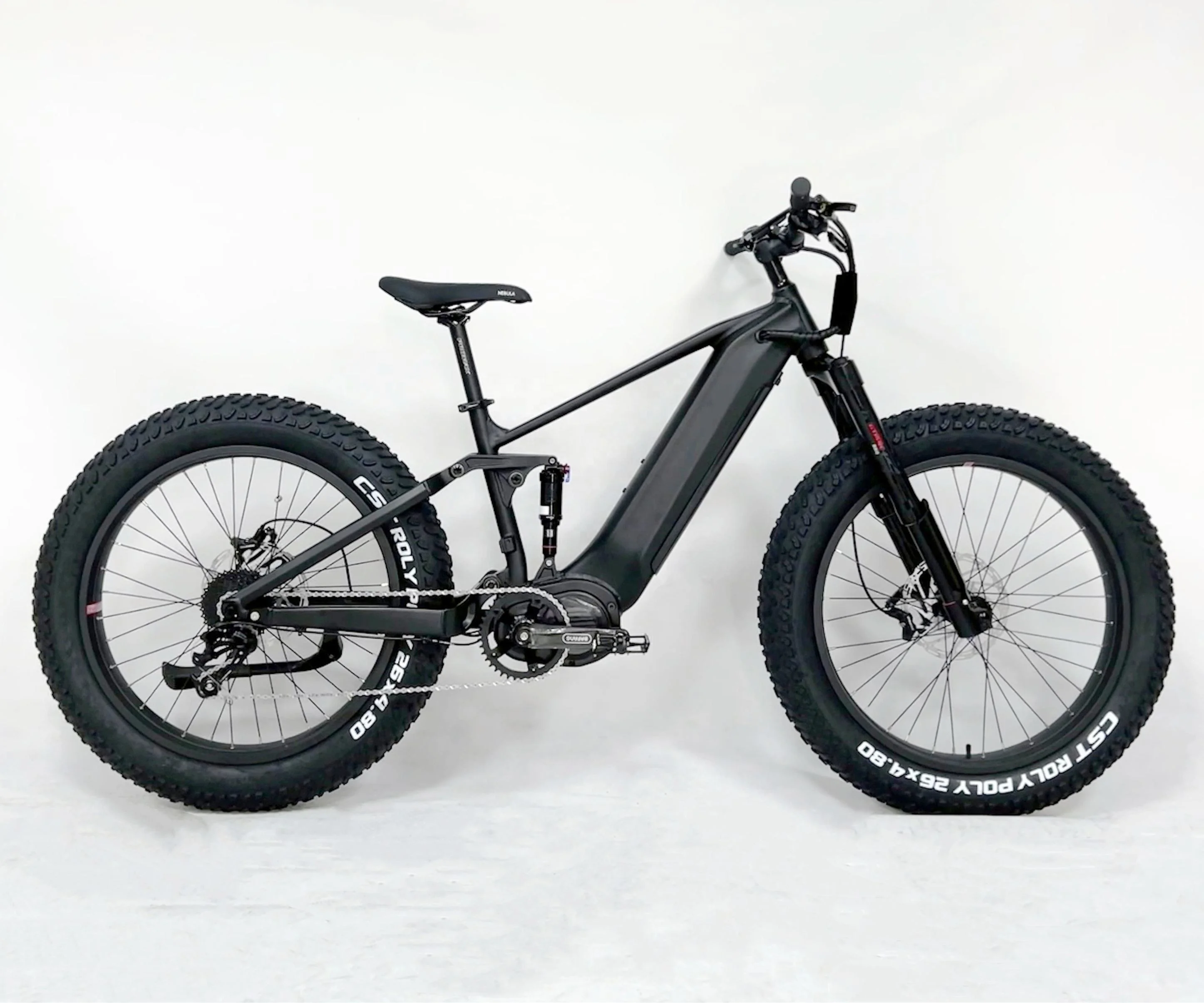

Product name: mid drive electric bike

Range per Power: > 60 km

Tire: CST 26*4.8″ fat tires

Torque: >100 Nm

Voltage: 48 V

Warranty: 2 years

Wheel Size: 26″

Product Description

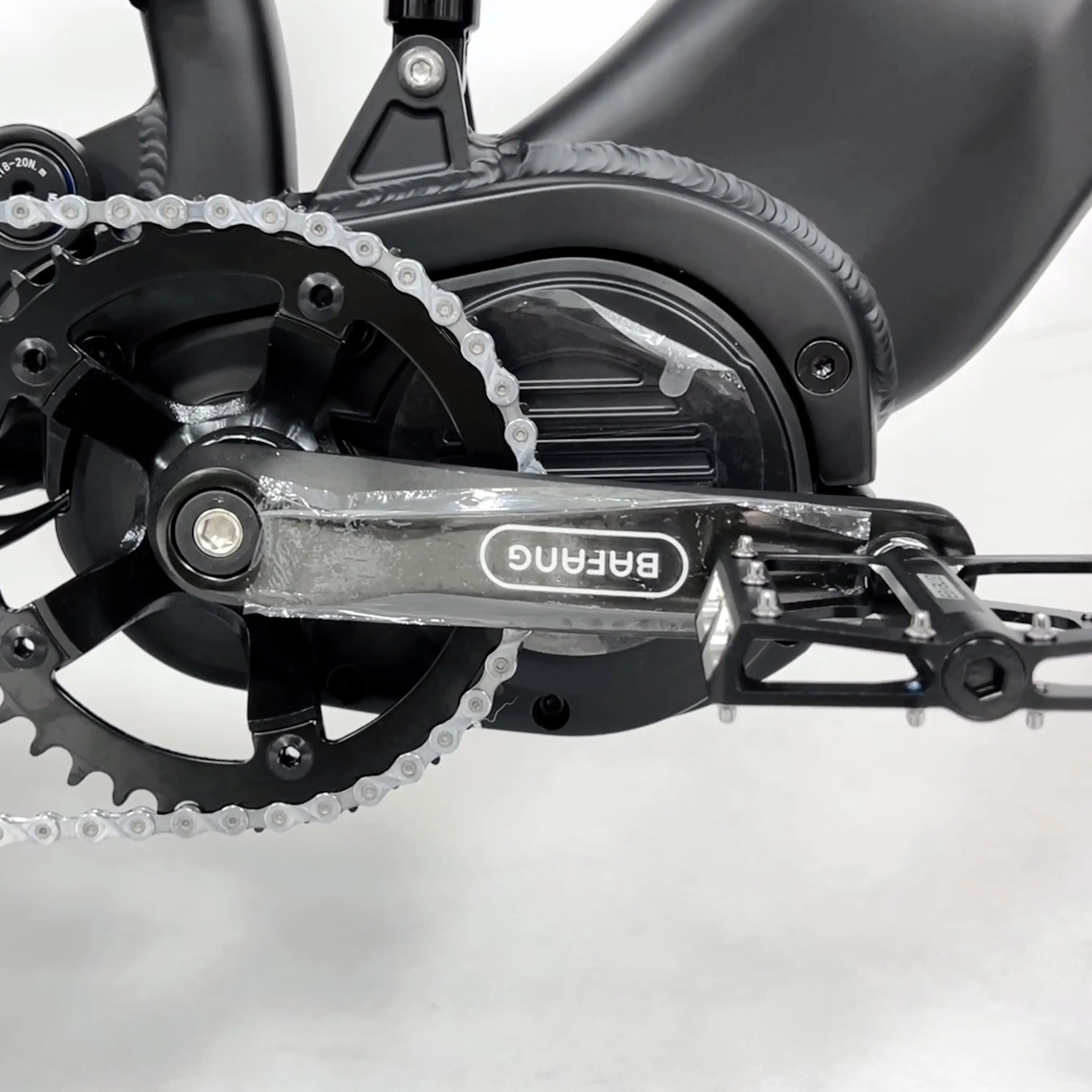

Frame	Aluminum alloy	Motor	48V 1000W Bafang M620 mid motor
Battery	48V 17.5Ah LG cells battery	Max speed	50-60km/h(can be adjust as request)
Charger	48V 3A smart charger	Charging time	4-6 hours

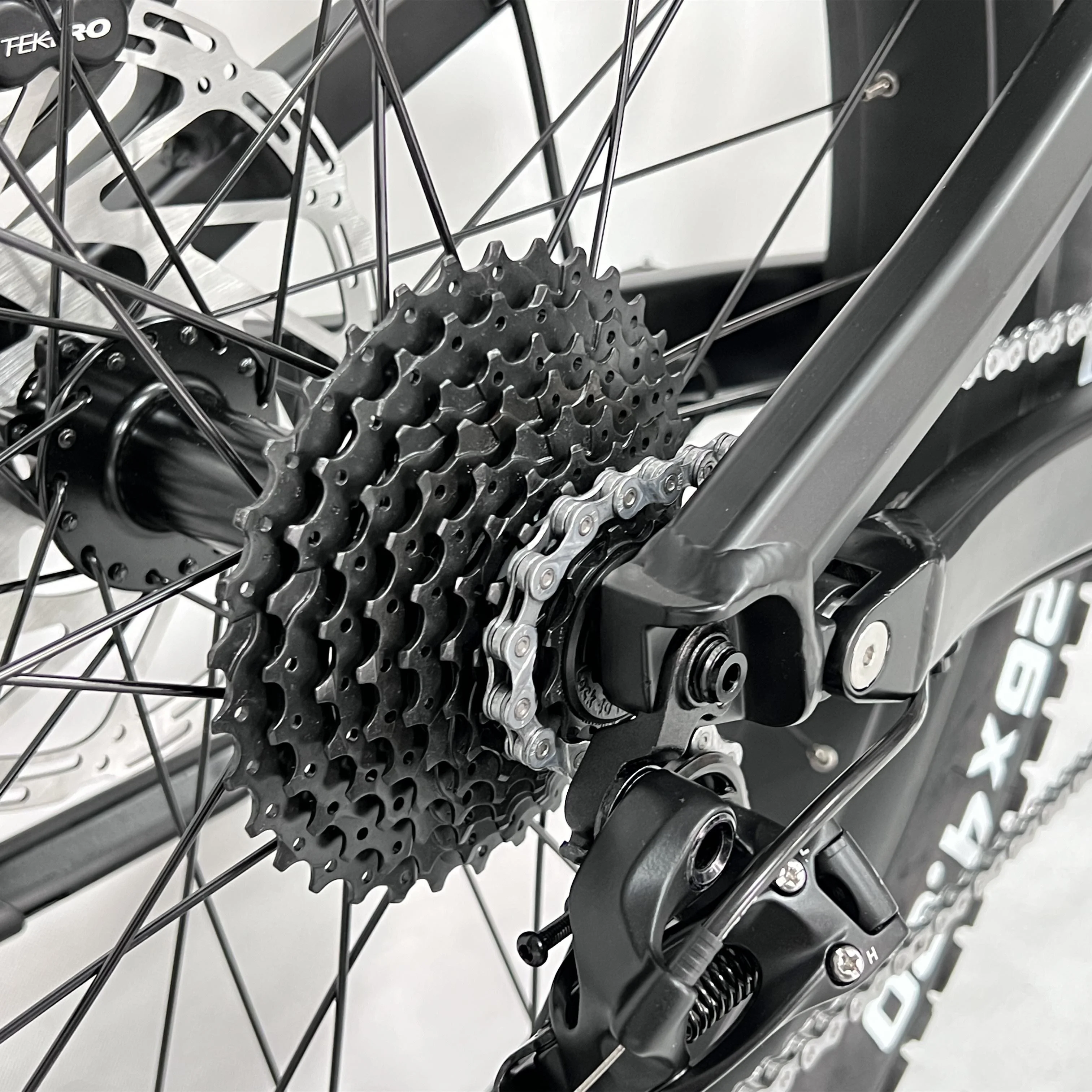

Range per charge	90-100km		SRAM X5 9 speed gears

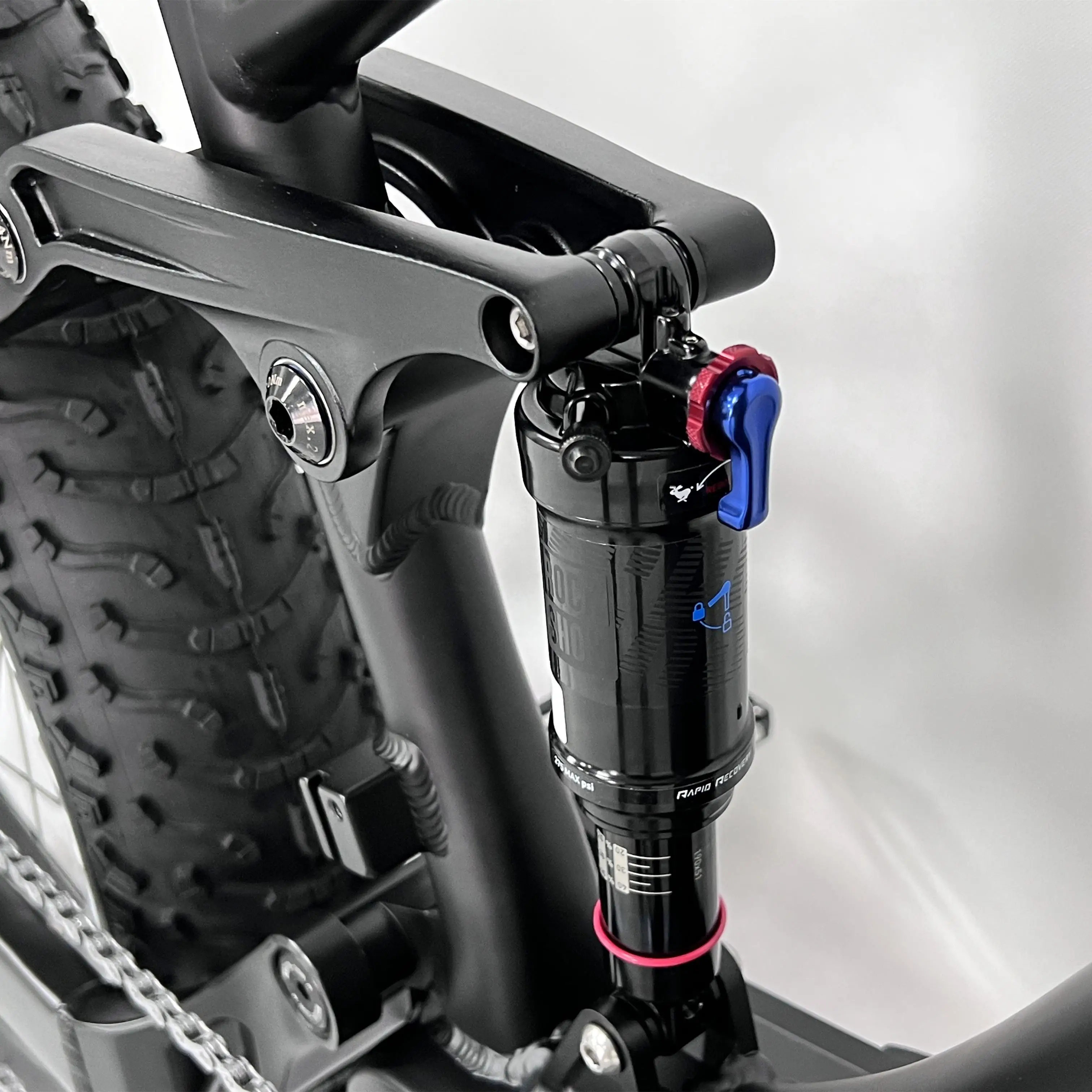

Front fork	GTMRK 860 Air suspension / Rear shock Rockshox Mornach RL	Brakes	Tektro HD E725 Hydraulic disk brakes
Tires	26×4.8″ CST fat tires	Display	Digital Colorful LCD display
Lights	LED headlight and taillight	Saddle	SR Nebula sport saddle
Weight	30kgs	Loading capacity	150kgs
Riding mode	Throttle/Pedal assist or both	Package	7 layers strong corrugated carton
Certification	CE,EN15194,RoHS	Warranty	2 years
