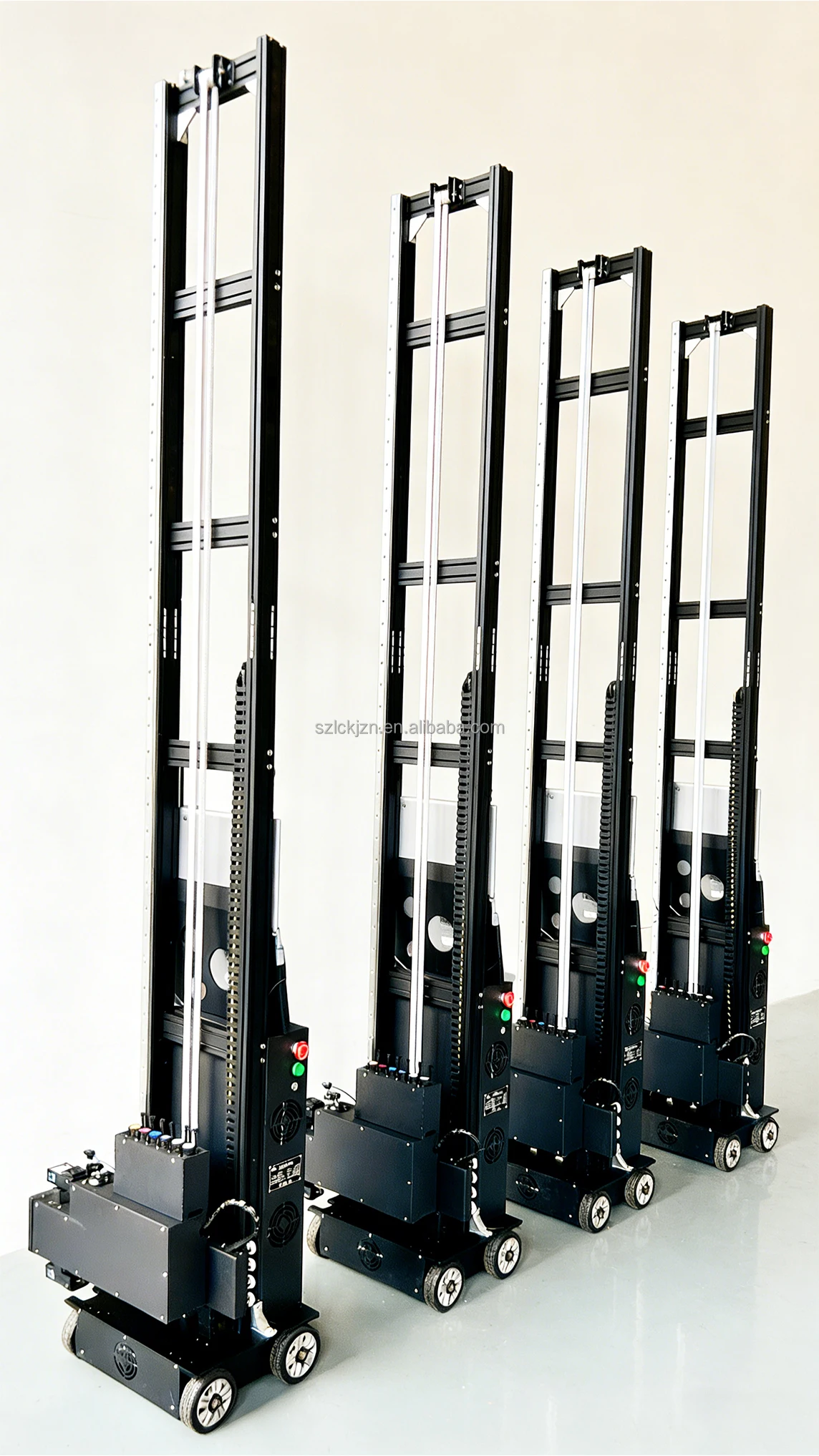

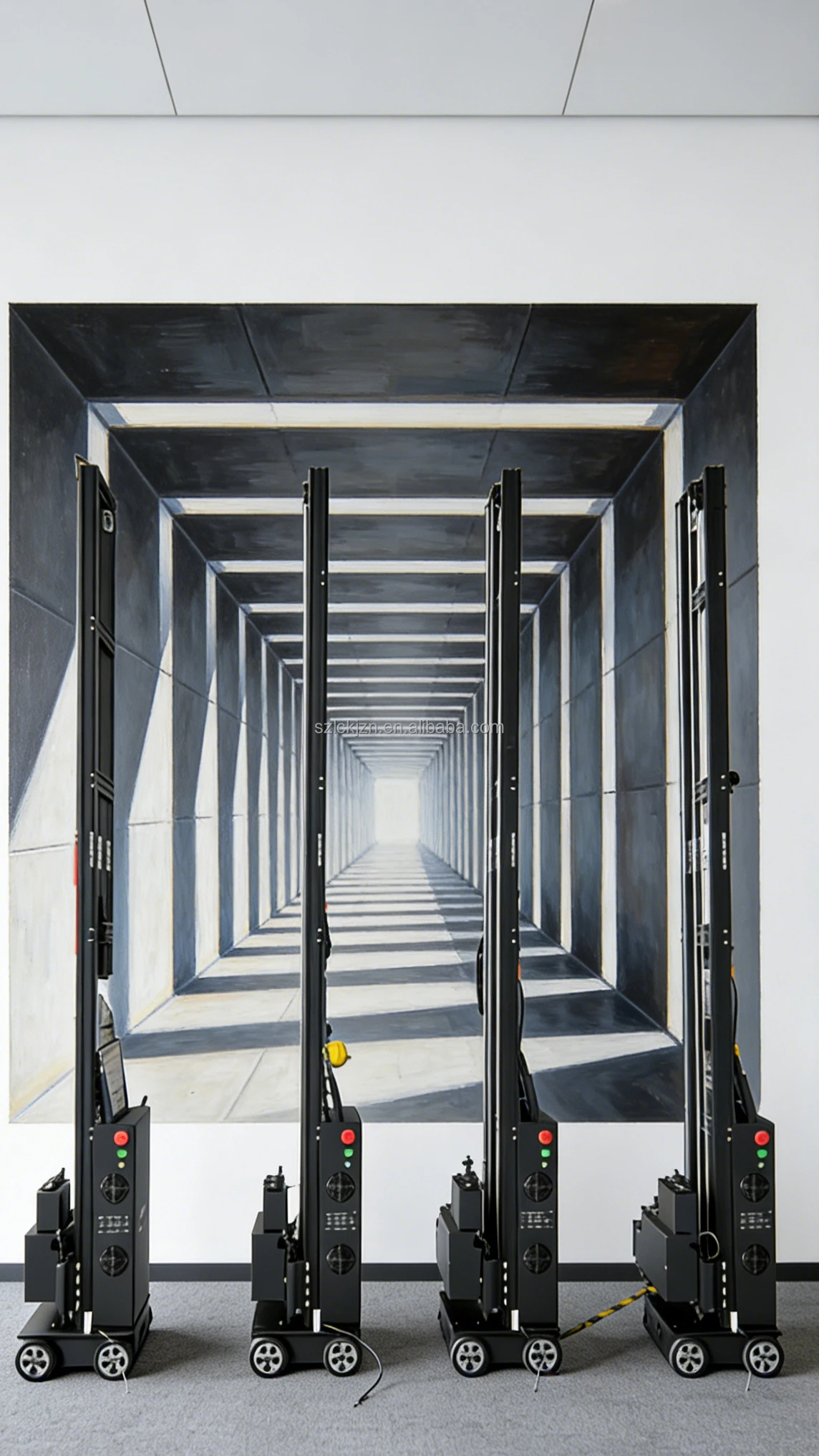

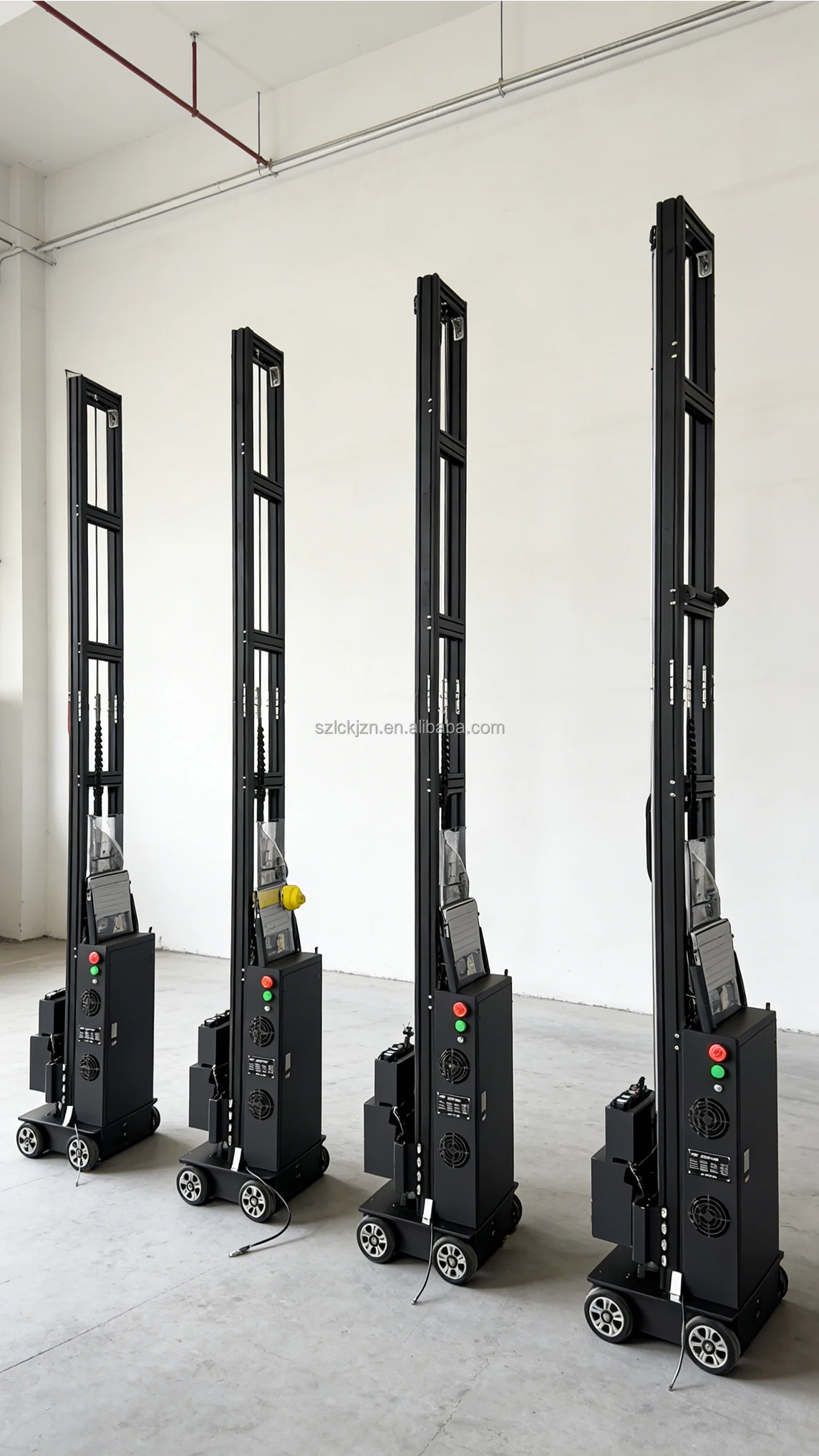

LC-A2C Wheeled All-in-One DX7 UV Inkjet Printer for Wall Painting Portable with Wireless Connectivity
SKU: d9jlgggmo52g00csl0ugPrice range: $4,500.00 through $10,800.00
CompareDescription
SPECIFICATIONS
Application: Indoor Outdoor Advertisement
Color & Page: Multicolor
Connectivity: Wireless,Wi-Fi,USB
Control Method: Application
Control Type: Push Button
Ink: UV 6-color combination: C / LC / M / LM / Y / BK.
Label: Style 1
Language: English/Russian/French/Chinese
Name plate: Laser Carving
Number of Lines: 3,4
Number of heads: 2-Heads,1-Head
Number of ink cartridges: 8,6
Operating Voltage: Ac 220-240V,AC 110-220V
Plate Type: Flatbed Printer
Power Mode: Power Supply
Print Media: Labels,Paper (Plain),Banner Paper,Glossy Photo Paper,Transparencies,Card Stock,Textile
Print Resolution: 4800 DPI,9600 dpi,1200 dpi,2400 DPI,600 dpi
Print Speed: 24 ppm
Print head: DX7,DX10,1 Epson print head
Print resolution: 720*720dpi,720*1080dpi,720*1440dpi,1080*1440dpi.
Print speed: 5-8㎡/H(Adjustable printing speed)
Printer Function Type: All-In-One
Printing Material: All walls, wood, tile, glass, plastic, metal.
Printing content: Any picture
Printing material: Various vertical media
Printing size: Unlimited
Product name: LC-A2 Wheel printer
Resolution: 1200 dpi,4800 DPI,2400 DPI,9600 dpi,600 dpi
Special Feature: Refillable Ink Tank,Display Screen,Portable
Speed: 50 cm/min
Type: Inkjet Printer
Voltage: 110V/220V
automatic grade: Automatic
brand name: CENND
condition: New
dimensions(l*w*h): 420*500*1500mm
ink type: CMYK UV,CMYK+W UV
place of origin: Guangdong, China
usage: Paper Printer,Label Printer,Card Printer,Tube Printer,Bill Printer,Cloths Printer,Wall painting
warranty: 2 Years
weight: 35

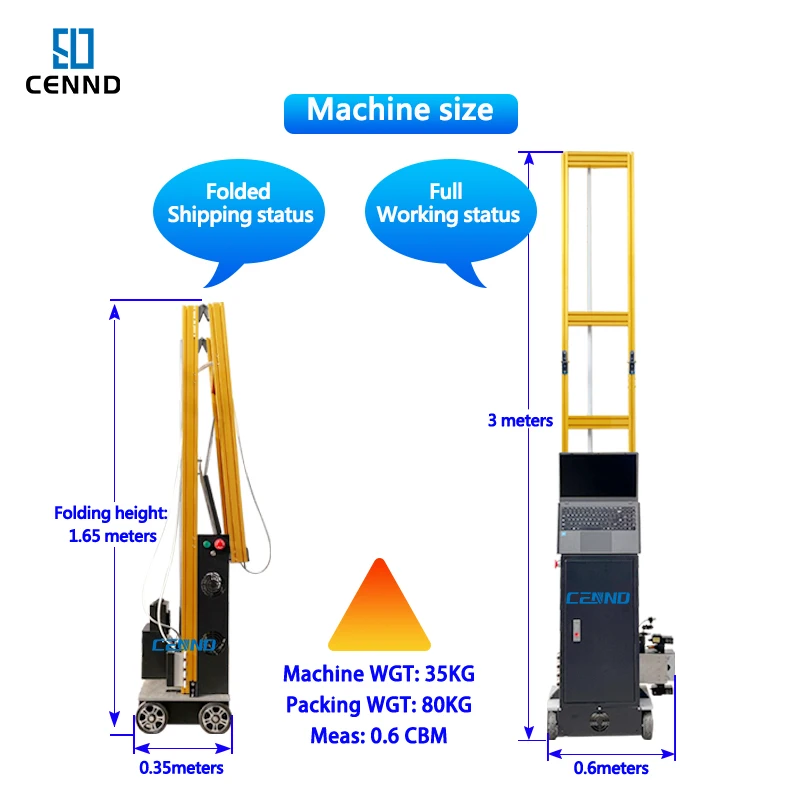

1. Lightweight & Foldable Design, 5-Minute Quick Startup
|
LC-A2 Wheeled UV Wall Inkjet Printer
|
||||||
|
Machine model
|
LC-A2C
|
LC-A2S
|
LC-A2Pro
|
|||
|
Printhead Model
|
Epson DX10
|
Epson DX7
|
Epson I1600-U1
|
|||
|
Number of Printheads
|
1
|
1
|
2
|
|||
|
Number of Printheads
|
3-8 m² /hour
|
4-10 m² /hour
|
5-15 m² /hour
|
|||
|
Printing Size
|
2500mm*6000mm
|
2500mm*6000mm
|
2500mm*6000mm
|
|||
|
Laptop
|
Win10-8G-256GB
|
Touchscreen Win11-16G-512GB
|
Touchscreen Win11-16G-1TB
|
|||
|
Machine Ink
|
UV CMYKWW
|
UV CMYKWW
|
UV CMYKWW
|
|||
|
Motherboard
|
Fiber 2.0 data transmission
|
Fiber 3.0 data transmission
|
Fiber 3.0 data transmission
|
|||
|
Detector
|
2
|
2
|
2
|
|||
|
UV Lamp
|
2
|
2
|
2
|
|||
|
White Ink Printing
|
Supported
|
Supported
|
Supported
|
|||
|
White Skipping
|
Supported
|
Supported
|
Supported
|
|||
|
Bidirectional Printing
|
Supported
|
Supported
|
Supported
|
|||
|
Power-off Memory
|
Supported
|
Supported
|
Supported
|
|||
|
Ink Heating
|
None
|
None
|
Supported
|
|||
|
Machine Track
|
1.5m*2pcs
|
1.5m*3pcs
|
1.5m*4pcs
|
|||
|
Supported File Formats
|
JPG, BMP, TIFF, PDF, AI, PSD, CDR, etc.
|
|||||
|
Printing Materials
|
Any wall surface, tiles, glass, wood boards, PVC, metal, etc.
|
|||||
|
Print Resolution
|
720x720dpi, 720x1080dpi, 720x1440dpi, 720x1800dpi, 1440x2880dpi
|
|||||
|
Machine Price
|
3500USD/set
|
4500USD/set
|
6500USD/set
|
|||

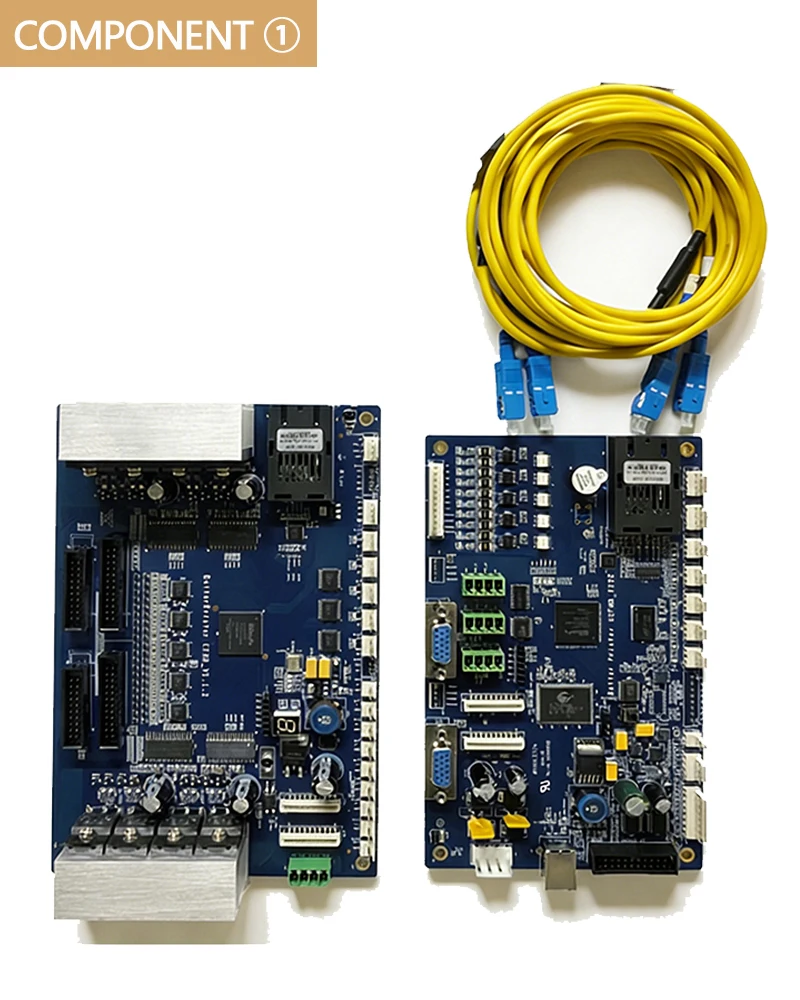

1. Stable, Fast & Anti-Interference Signal
Fiber optic transmission delivers stable speed and rapid data transfer with excellent anti-interference capability, avoiding signal loss and low-speed issues common in wired cable connections.
2. Dramatically Reduced Failure Rate
Fiber optics significantly minimizes inkjet malfunctions while boasting an ultra-low operational failure rate, addressing the critical shortcoming of frequent failures in wired cable systems.
3. More Reliable Guarantee
Surpassing wired cables in both durability and stability, fiber optics eliminates problems such as easy aging and high maintenance requirements, laying a solid foundation for the long-term stable and efficient operation of the machine.

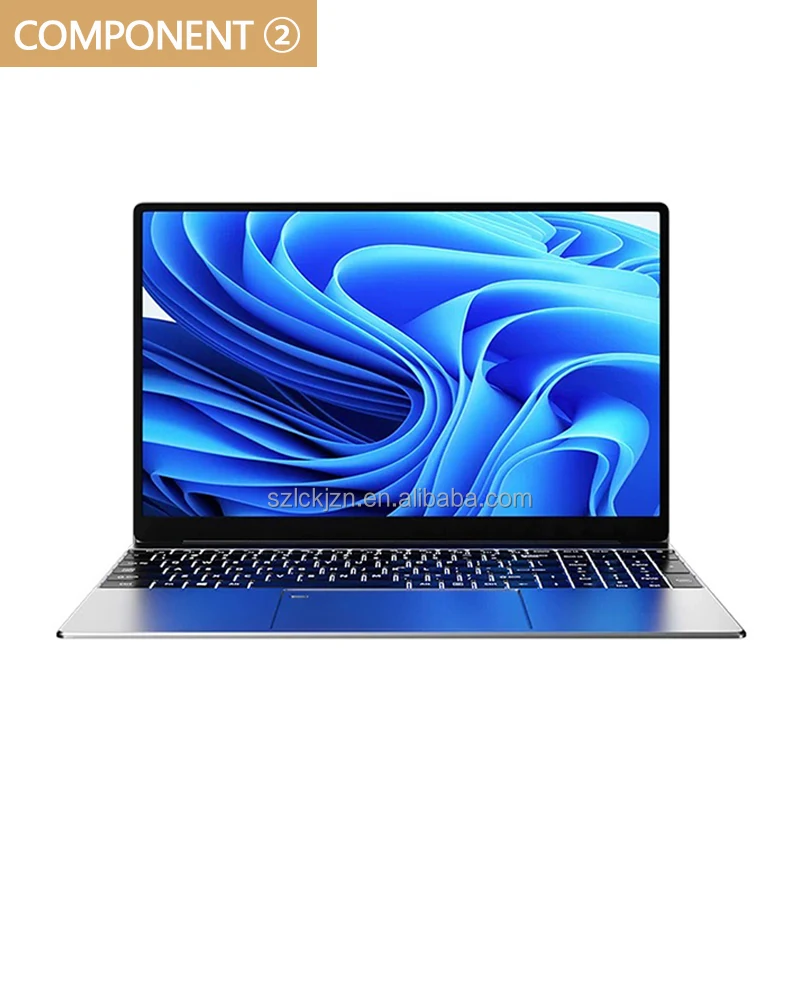

LA-2C Ultra-Slim Win10 Laptop (8GB RAM + 256GB SSD)

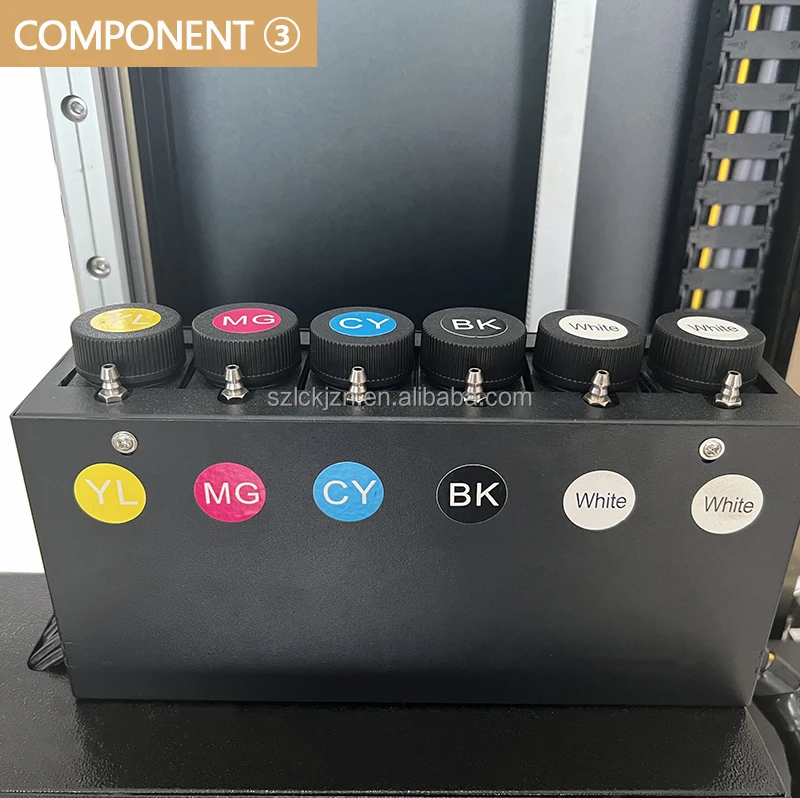

1. Supports single white ink printing and white+color mixed printing modes, compatible with various vertical flat materials such as walls, tiles, and glass. It offers extremely high creative flexibility to meet diversified printing requirements.
3. UV ink enables rapid curing, ensuring the printed works have strong adhesion and possess waterproof, sunproof, wear-resistant, and anti-aging properties.

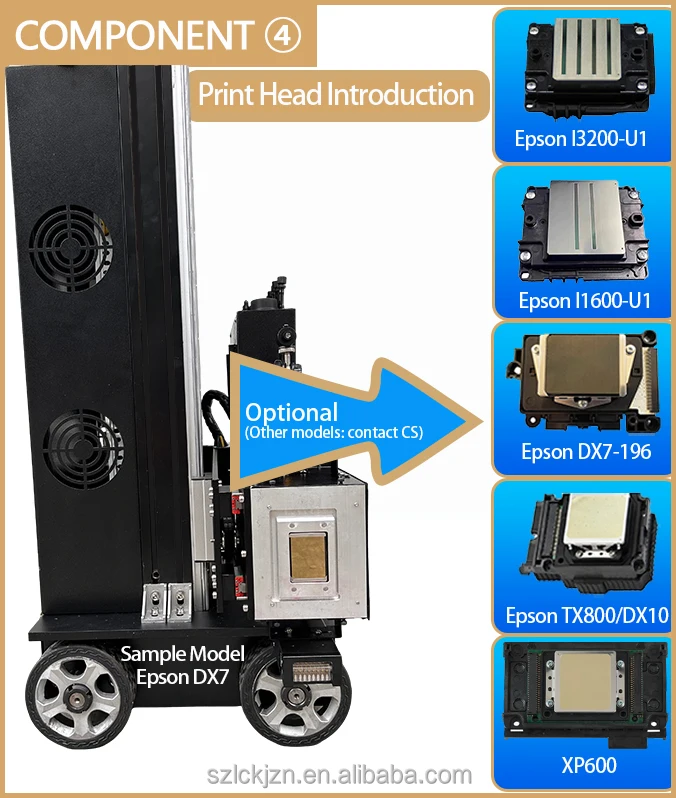

2. I1600-U1 Entry-Level UV-Specific Printhead, with cost-effectiveness and efficiency as its core advantages, effectively controls cost input and supports UV ink printing.
3. DX7-196 is a multifunctional printhead featuring variable droplet technology. It can flexibly adapt to different precision requirements, possesses both stability and versatility, and supports UV ink printing.
4. XP600/TX800/DX10 have the advantages of low cost and high printing resolution, and are alternative solutions with both economy and practicality.

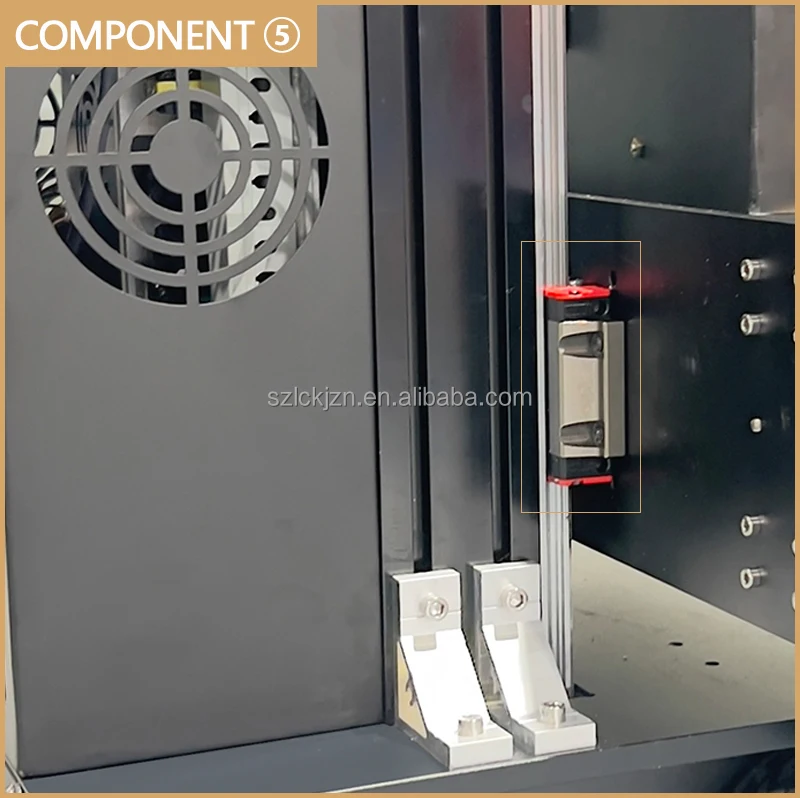

2. Compared with the “low-quality rubber wheel + aluminum profile card slot” rolling transmission, the rubber wheel is prone to wear, requiring replacement within a month under high-frequency printing, which increases maintenance costs and reduces operational efficiency.

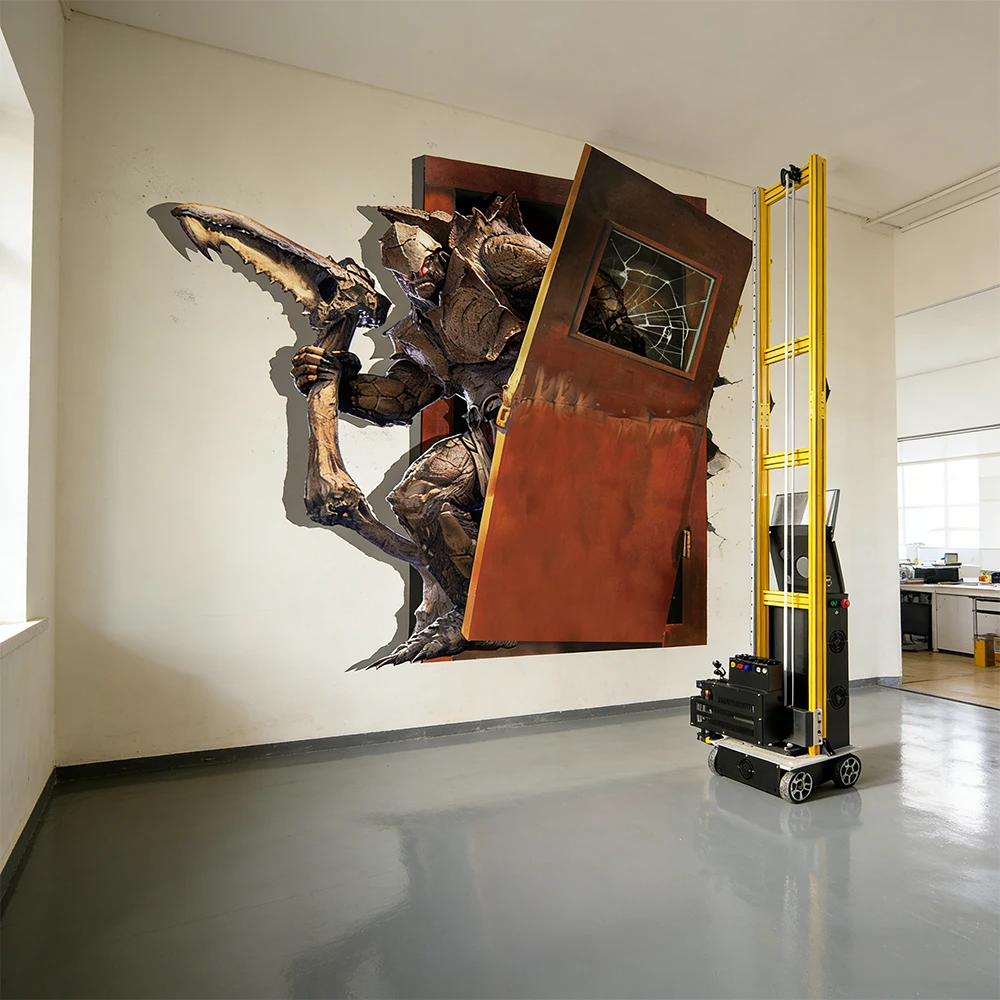

1.Adopts a wheeled mobile design, supporting direct mobile printing on flat surfaces. With an unlimited movement range, it enables
single-pass printing of extra-long patterns (10m+).

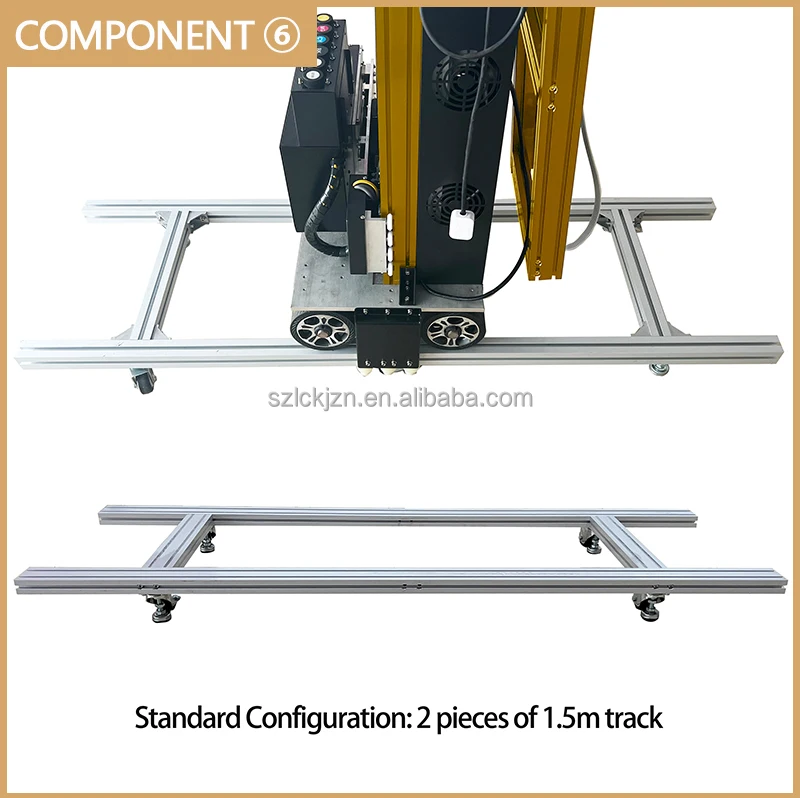

2.For uneven ground conditions, it comes standard with a 3-meter track assembly, ensuring precise printing even in complex ground environments.

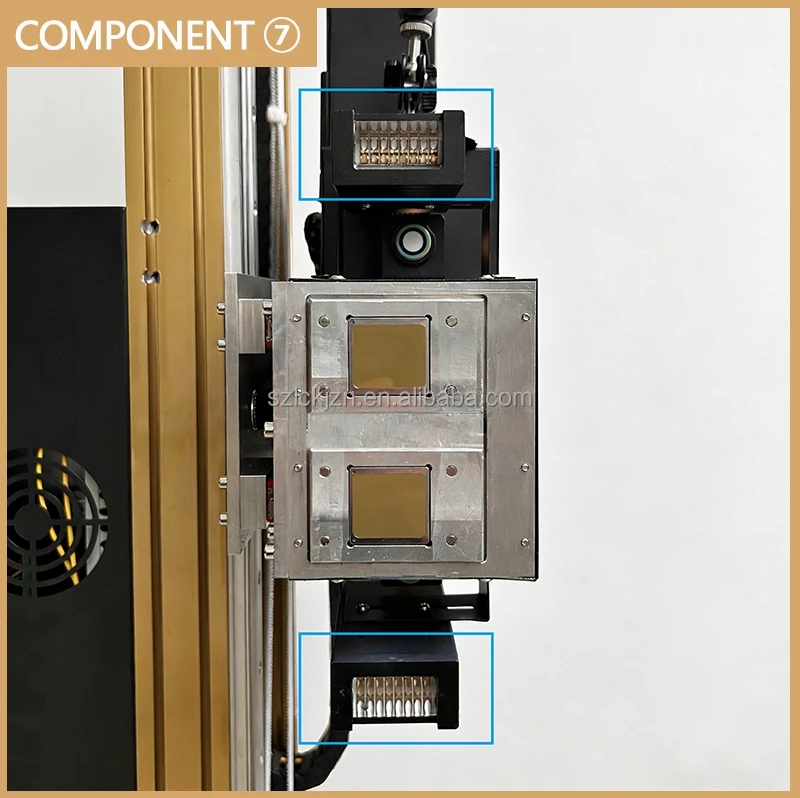

2. This configuration not only enables instant ink curing during bidirectional printing to ensure immediate pattern setting and stronger adhesion but also effectively shortens the X-axis movement stroke.
3. It significantly increases the equipment’s effective printing height and further expands application scenario adaptability.

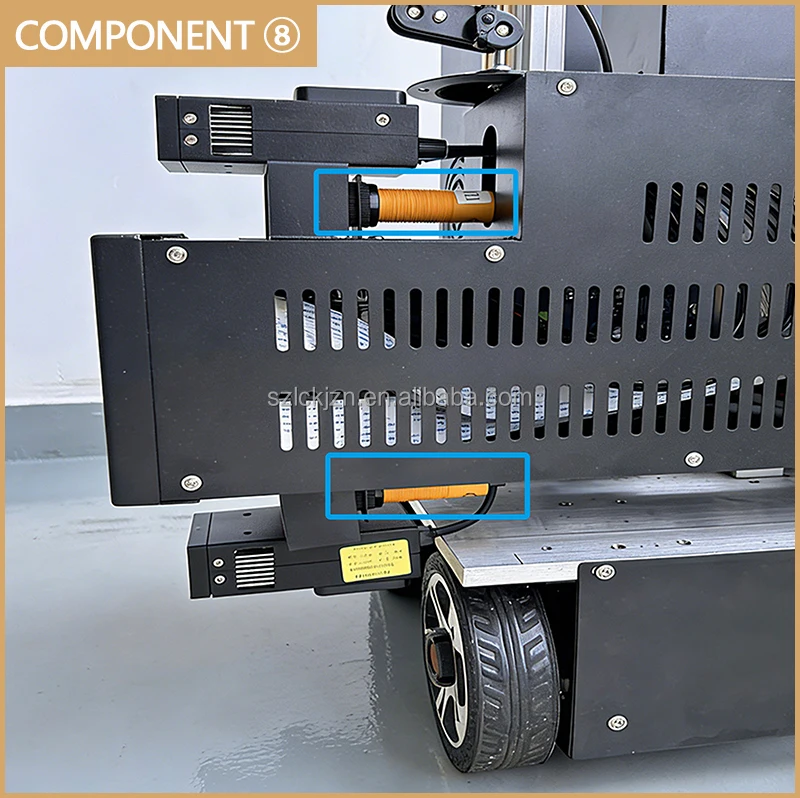

2. During printing, the system automatically adjusts the optimal printing distance between the printhead and the wall in real time, effectively preventing collisions that could cause damage to the printhead or the wall.
3. It comprehensively safeguards the safety of the equipment’s core components and ensures the stable and efficient operation of printing tasks.

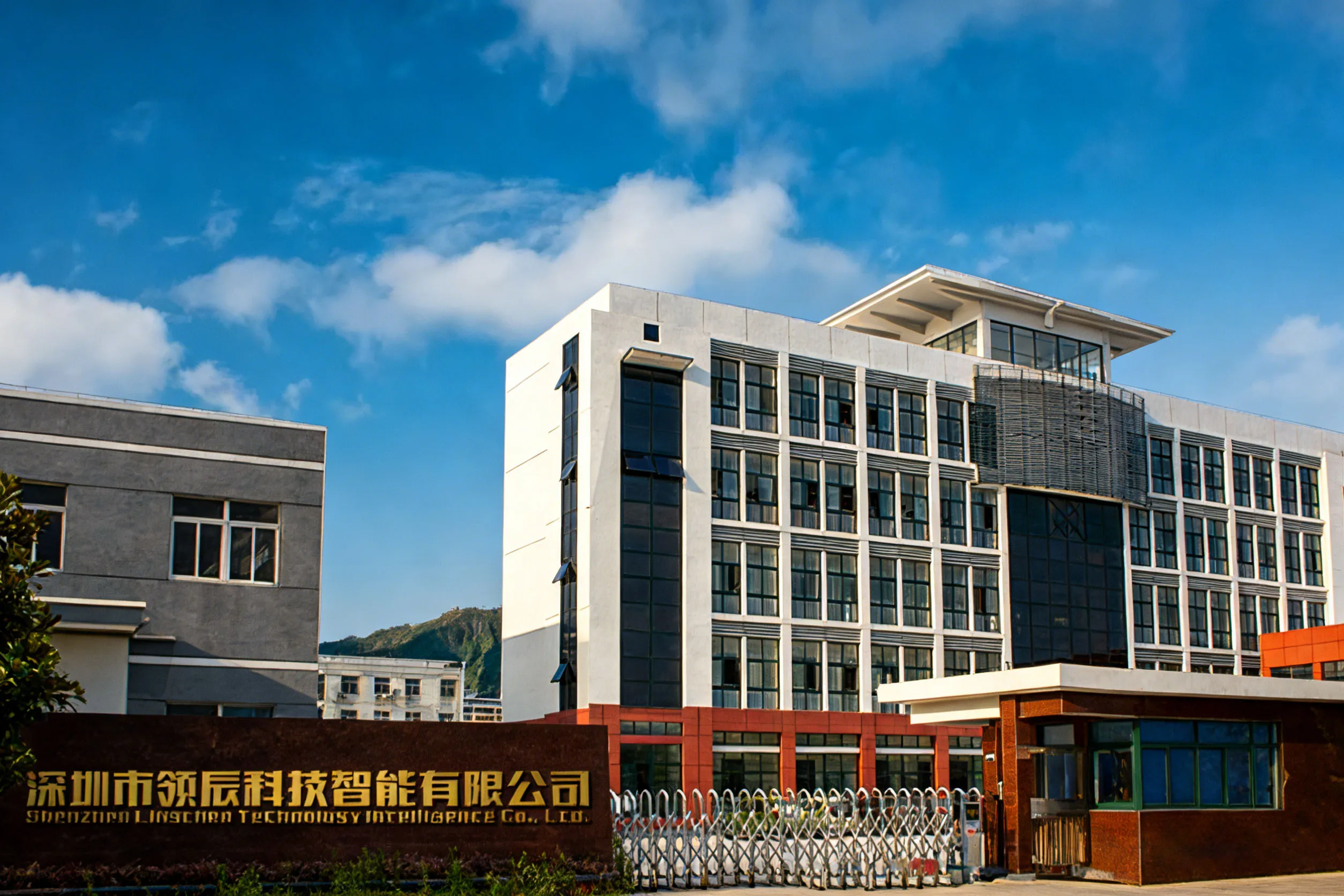

Backed by a high-quality R&D team, Lingchen Intelligent boasts a number of independently developed patented technologies. Its core business spans the full industrial chain services of wall painting machines, wall spraying equipment, digital printers, flatbed printers, etc. The products integrate technological advancement and cross-border market adaptability, accurately meeting the market demands of different countries and regions.
On the production front, the company is equipped with a modern production base and has established a strict full-process quality control system from component procurement to finished product delivery, ensuring the stable quality of every factory-delivered product. On the marketing front, relying on mature e-commerce platforms and high-quality overseas channel resources, it realizes the in-depth integration of domestic trade and the import and export of goods and technologies, with products exported to many countries and regions around the world.
Adhering to the philosophy of “customer-centric, quality-oriented, and innovation-driven”, the company is committed to providing global customers with a cooperative experience of “one-stop procurement + professional cross-border services”. It continuously empowers international partners with high-quality products and customized solutions, helping both parties achieve win-win development.
1).Core Advantages of Cross-border Product Adaptability
1. Full-range International Compliance Certifications:

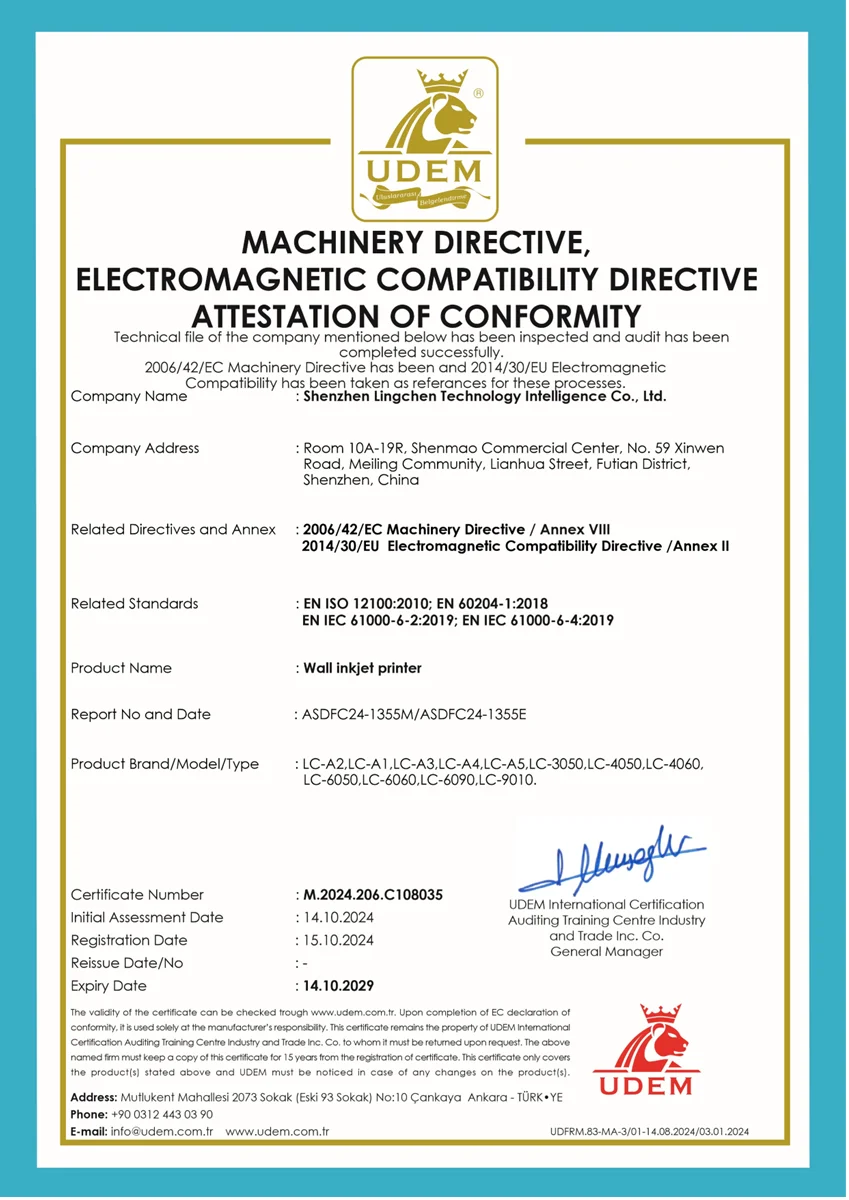

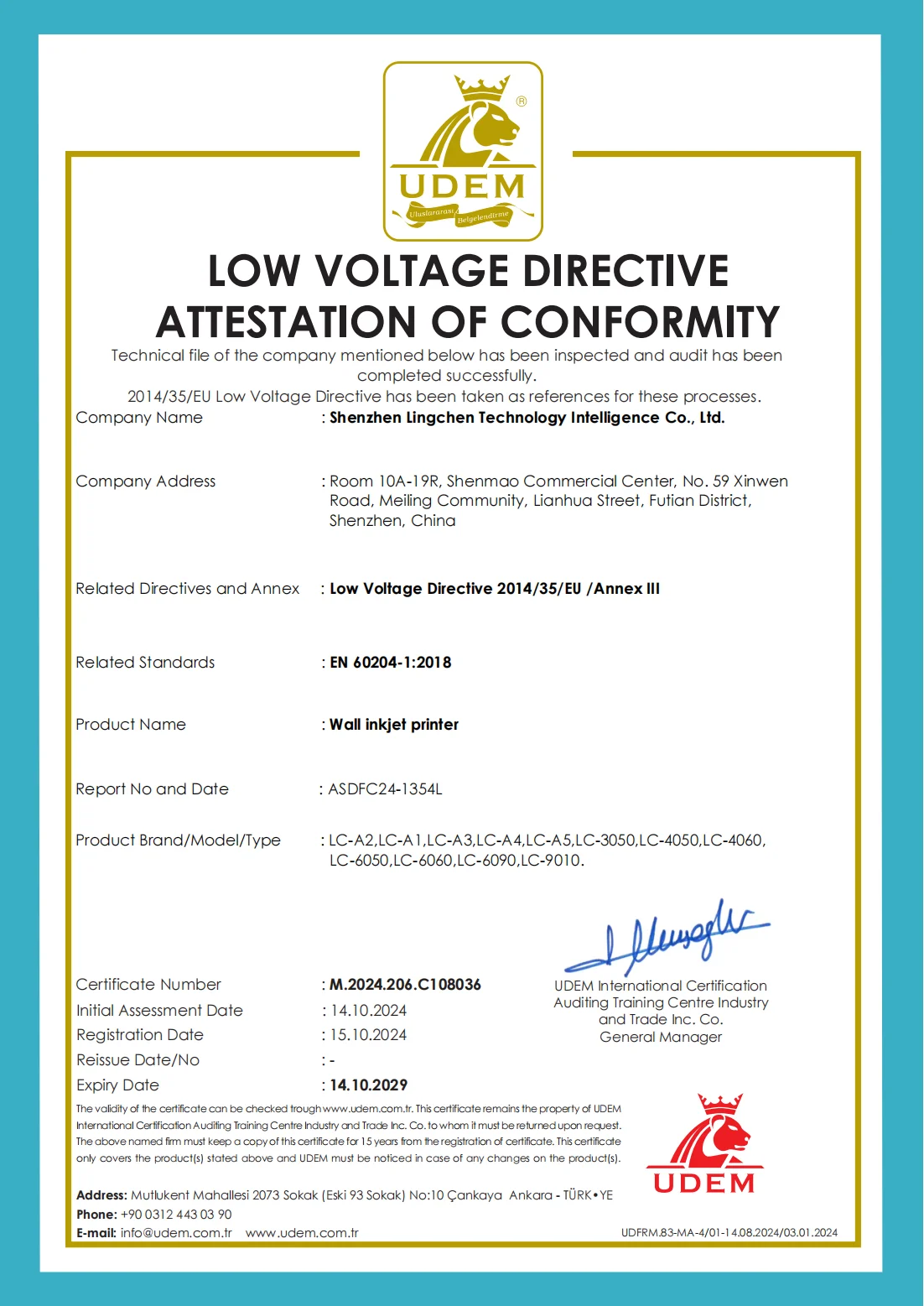

Core products (wall painting machines, wall spraying equipment, digital printers, etc.) have obtained authoritative international certifications including CE, FCC, and RoHS, fully complying with technical standards and safety regulations of mainstream markets such as the EU, North America, and Southeast Asia. They can quickly enter the market without additional modifications, significantly shortening the cross-border launch cycle.
2. Multi-dimensional Seamless Scene Adaptation:
* Comprehensive Multi-language System: The equipment’s operation interface and supporting manuals cover over 10 mainstream languages such as English, Spanish, German, French, and Arabic, lowering the learning and operation threshold for overseas users and enhancing user experience;
* Stable Adaptation to Extreme Environments: Targeting climatic characteristics of different regions such as high temperature, high humidity, and low temperature, the equipment’s heat dissipation system and protective structure have been specially optimized to ensure 24/7 stable operation in various global environments.
3. Precise Empowerment via Customized Production:

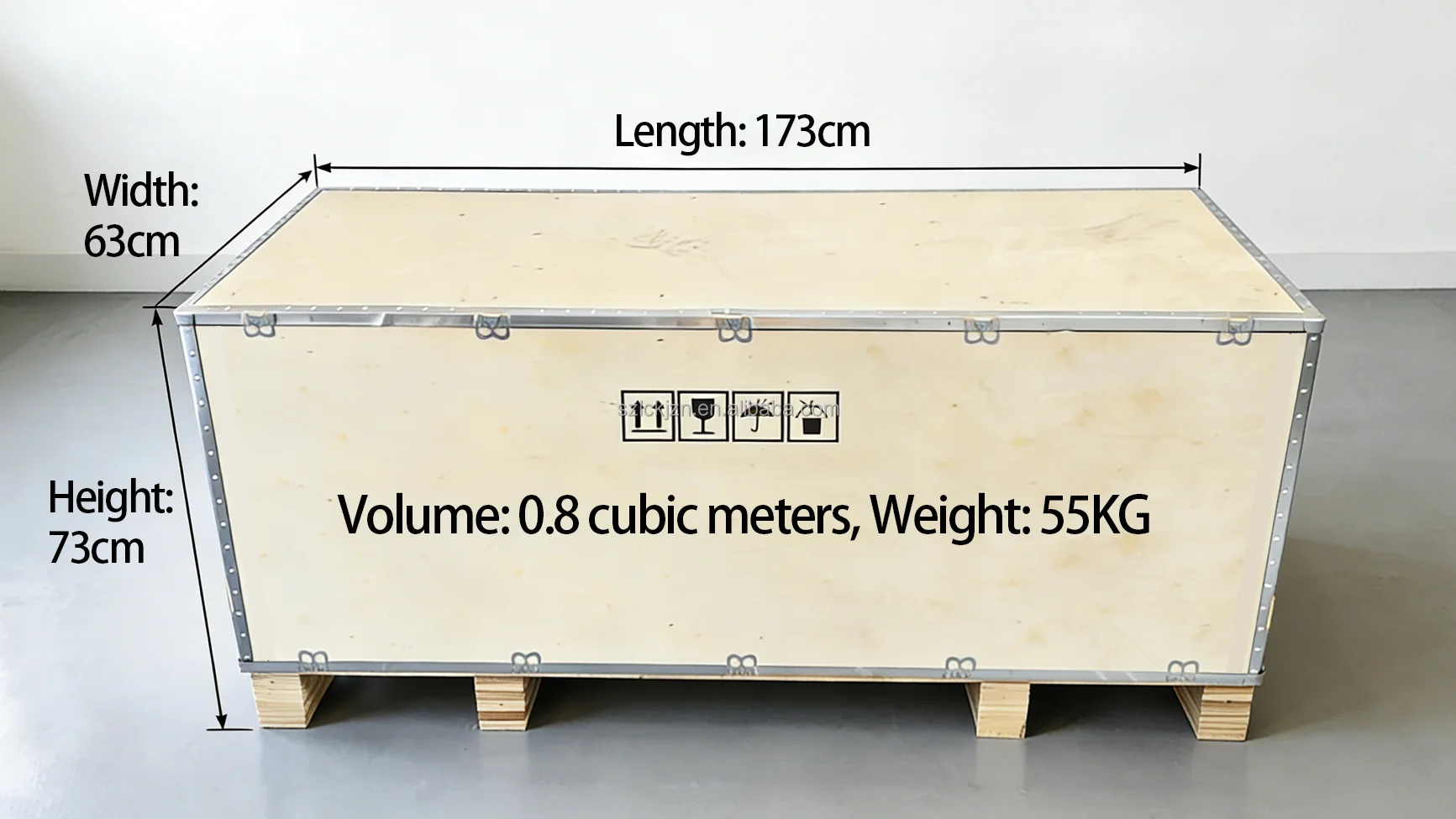

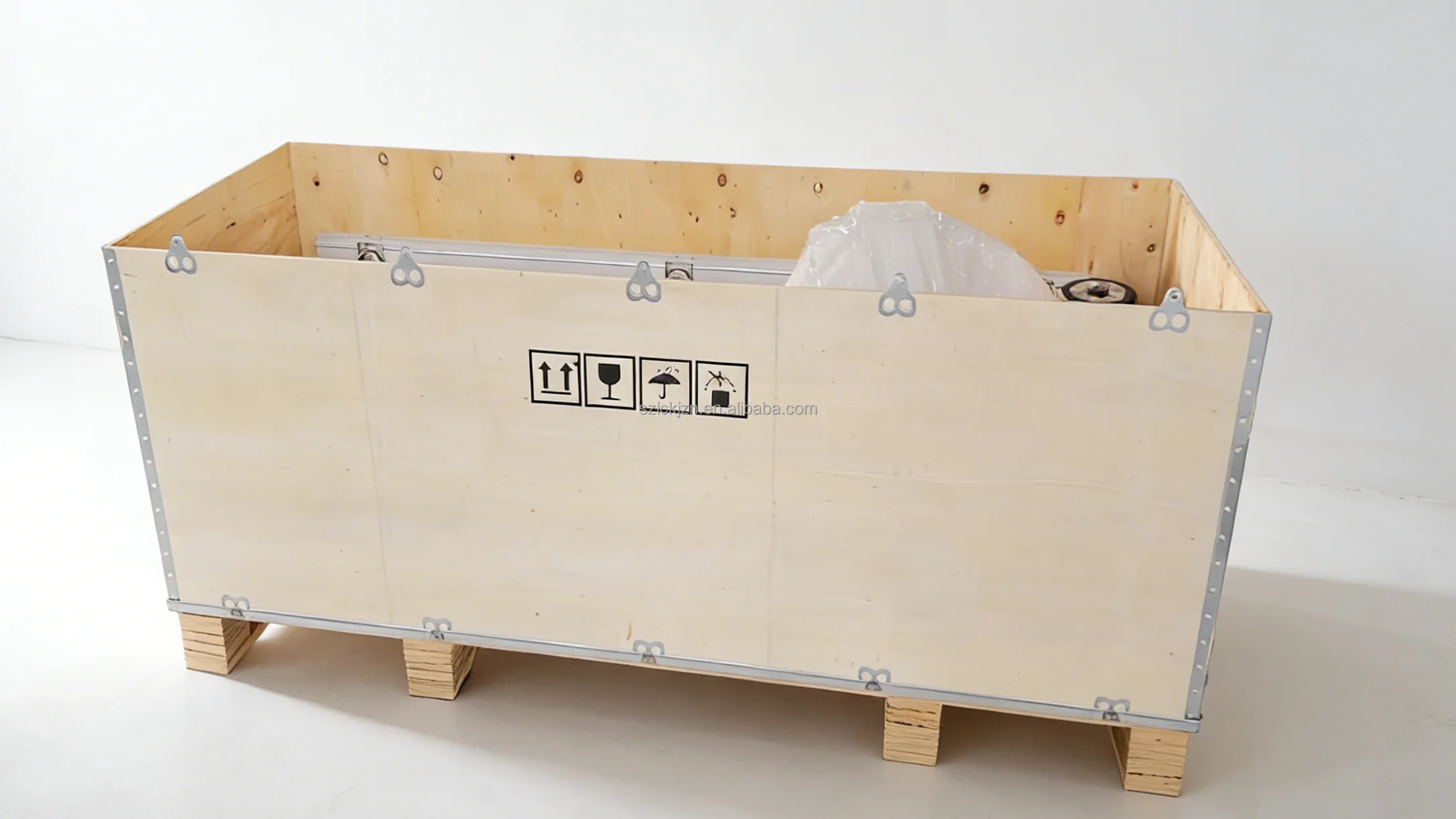

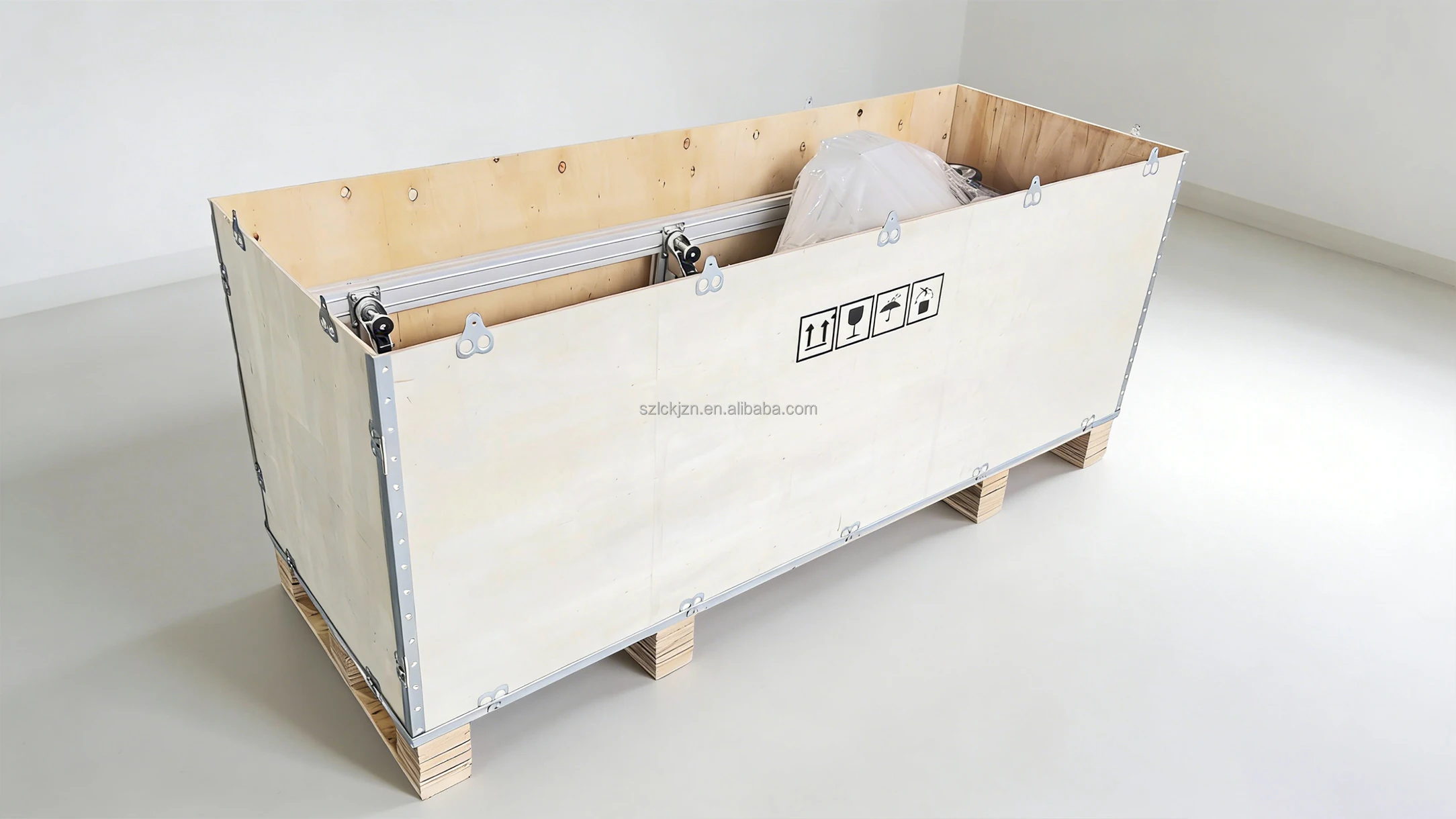

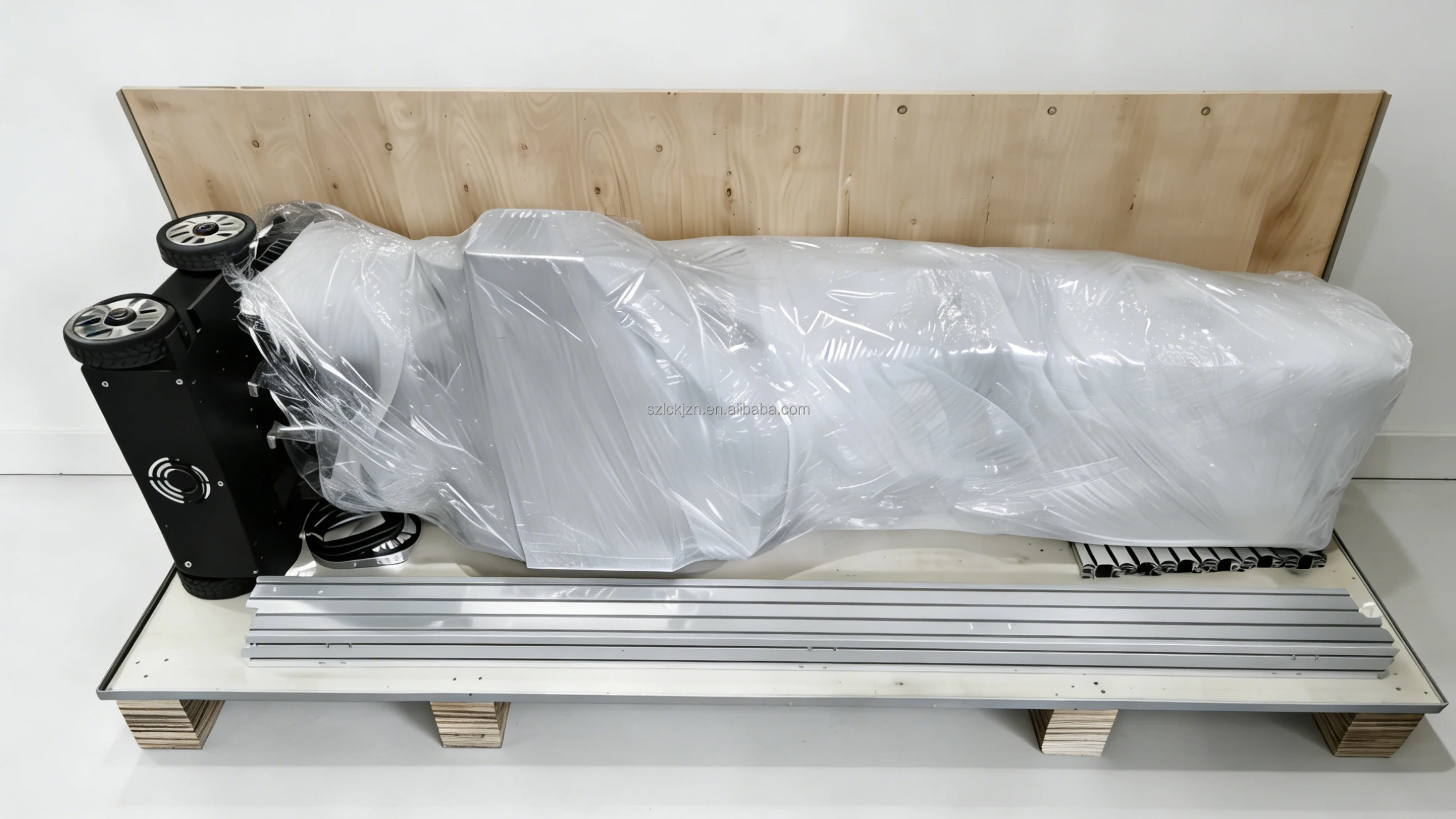

5. Professional Cross-border Packaging Solutions: Adopting export-grade shockproof, moisture-proof, and rust-proof packaging, paired with customs-compliant labels and documents (commercial invoice, packing list, certificate of origin), to reduce transportation losses and customs clearance risks.
6. Flexible Inventory Management: Supporting small-batch trial orders (MOQ ≥ 1 unit) and large-scale bulk purchases, we maintain spot inventory of best-selling cross-border models, enabling quick responses to overseas customers’ urgent orders and restocking needs.
3).Advantages of Cross-border Trade Facilitation
8. Flexible Cooperation Modes: Supporting multiple trade terms such as FOB, CIF, and DDP, we adapt to different cooperation partners including overseas distributors, agents, and end customers. We accept mainstream cross-border payment methods such as T/T, L/C, PayPal, and Western Union, ensuring fund security.
9. Market Adaptation Support: We provide overseas partners with local market research, competitor analysis, and marketing materials (multi-language product brochures, promotional videos, and case libraries), helping partners quickly develop regional markets.
After-sales Guarantee
after-sales response time ≤ 1 hour.
2. Multi-language online training courses (covering equipment operation, maintenance, and troubleshooting);
3. Complimentary cross-border exclusive technical manuals and video tutorials, with 24/7 online technical consultation support (multi-channel response via email, WhatsApp, and Skype).
4. Accessory Supply Guarantee: Long-term cooperative customers are entitled to accessory purchase discounts and priority supply rights.
5. 2-year warranty for the entire machine (excluding damage caused by human error, and consumables such as ink/print heads).
Wall Printer FAQ
1. What is the printing precision of the wall printer? Can the color reproduction match the design drawing?
The mainstream physical resolution reaches 1200dpi, supporting pixel-level printing; adopting CMYK + white ink full-color gamut configuration, compatible with PANTONE color card calibration, color reproduction rate ≥ 95%, which can accurately match the design drawing. Equipped with a built-in color uniformity compensation algorithm to avoid color deviation in large-area printing,suitable for high-precision demand scenarios.

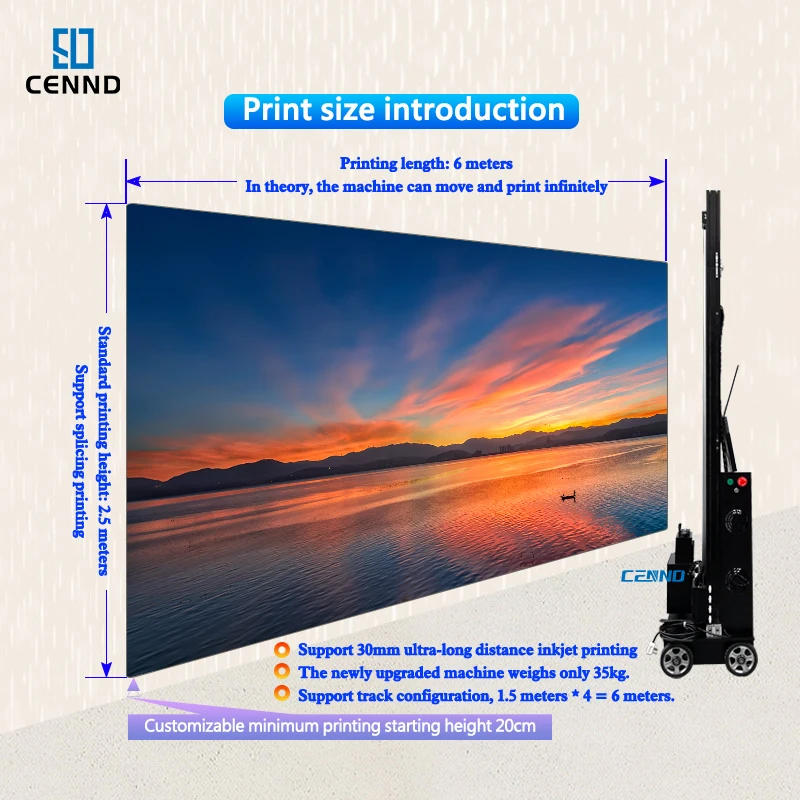

2. What is the maximum printing size and height? Can it support continuous printing on extra-long (e.g., over 10 meters) or ultra-high walls?
The conventional maximum printing height is 3.2 meters (4.5-meter ultra-high models can be customized), and the width is unlimited; wheel-type models support continuous printing of extra-long (10m+) walls, with laser positioning splicing error ≤ 1mm; ultra-high models are equipped with track lifting components, which can meet the printing needs of extra-large wall sizes.
3. Which wall materials are supported for printing? Is it necessary to pre-process the wall in advance?
Compatible with most indoor and outdoor materials such as cement walls, latex paint walls, and wallpapers. Preprocessing requirements: rough walls need to be leveled (flatness error ≤ 3mm), oil-based walls need to be degreased, and smooth walls can be printed directly; a special matching preprocessing fluid is provided to improve ink adhesion on special materials.
4. Can it be used on uneven walls or floors? What is the equipment’s wall detection and floor adaptation capability?
Suitable for uneven scenarios, relying on dual adaptation technology: 1. Wall adaptation: The radar detection system can identify 1-20cm unevenness, adjust the printhead distance in real time (precision 0.1mm), prevent collision and ensure effect; 2. Floor adaptation: Wheel-type design + 3-meter standard track, direct movement on flat floors, and stable printing on uneven floors by laying tracks.
6. Is pattern import convenient? Which file formats are supported? Can personalized pattern custom printing be realized?
Pattern import is convenient, supporting three methods: USB flash drive, wireless, and computer client; compatible with mainstream formats such as PNG, JPG, and PSD, and vector graphics can be infinitely enlarged without distortion. Personalized customization is supported, the manufacturer can assist in adaptation and calibration, and users can also adjust pattern parameters by themselves.
7. What is the cost of consumables (UV ink)? What is the approximate consumable loss per square meter of printing? Is the ink environmentally friendly and non-toxic?
about 0.6 US dollars for full color. The ink has passed CE and ROHS environmental certifications, non-toxic and odorless, with an indoor shelf life of ≥ 20 years and outdoor shelf life of ≥ 3 years, suitable for scenarios with high environmental requirements.
8. What is the equipment’s warranty policy? What is the after-sales response time and maintenance method in case of failure?
2-year whole-machine warranty for the main unit and lifelong maintenance (excluding man-made damage, consumables, ink, and printheads). After-sales service: 7×24-hour online response, spare parts can be provided for core component failures, and lifelong cost-price maintenance is available after the warranty period.
9. In addition to the main unit, are track, consumables, cleaning tools and other accessories included as standard? Can accessory replacement services be provided subsequently?
Core accessories such as 3-meter track, 2.5-liter trial ink, and cleaning kit are included as standard. Subsequent accessory
guarantee: Free replacement for damaged accessories within the warranty period, and accessory replacement guidance is provided.
Additional information
| Weight | N/A |
|---|---|
| gross power | AC220/110±10,50-60Hz,P100W |
| printing size | 2500mm*6000mm |
| model number | LC-A2C CMYK, LC-A2Pro CMYKW, LC-A2S CMYKW |
